Cherry Picking
Dual Mosquito System

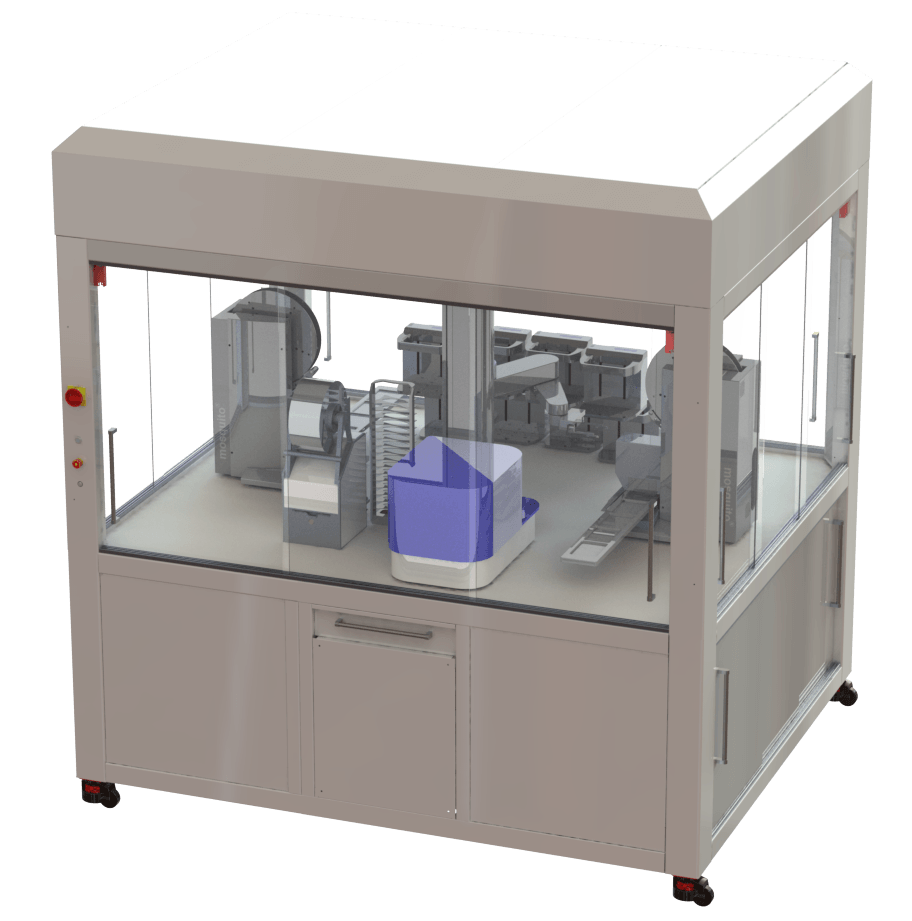

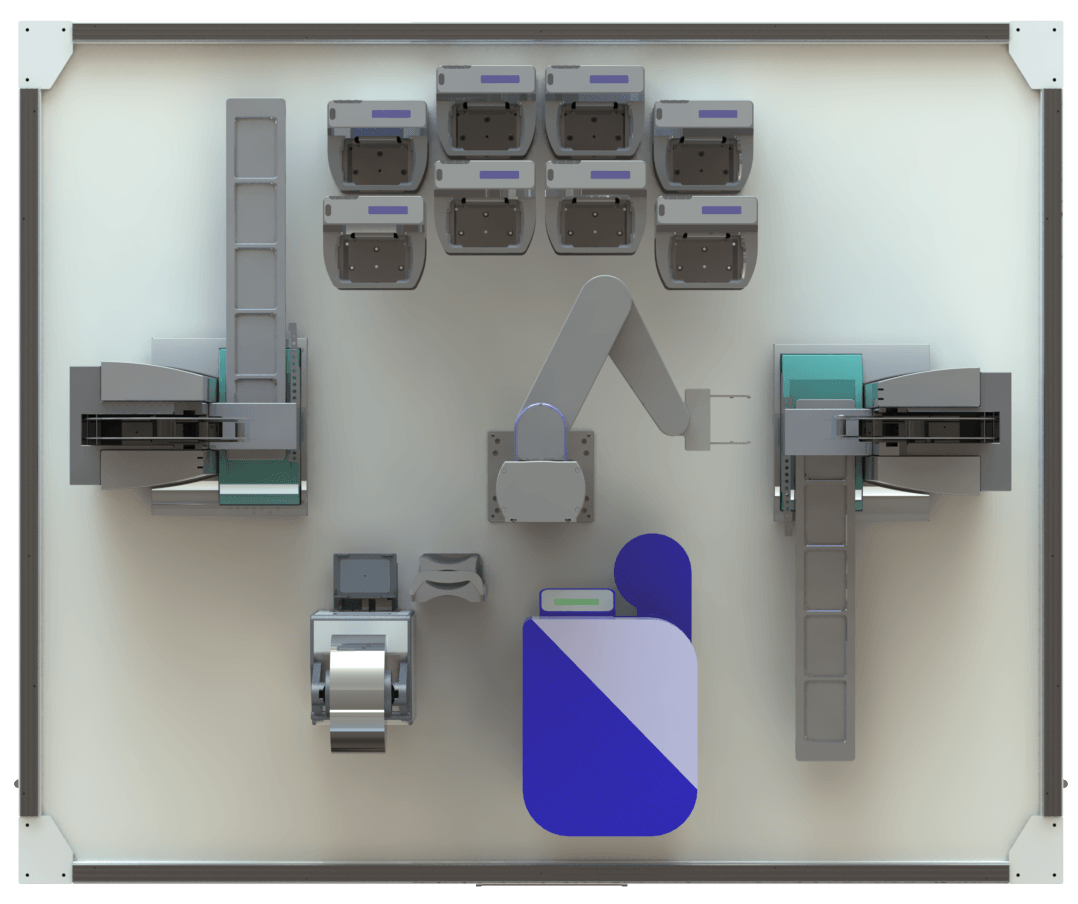

SYSTEM SUMMARY: Twin Mosquito Cherry picking system
SYSTEM TYPE: LabworX Smartcel-1
LOCATION: UK
Process Specifications

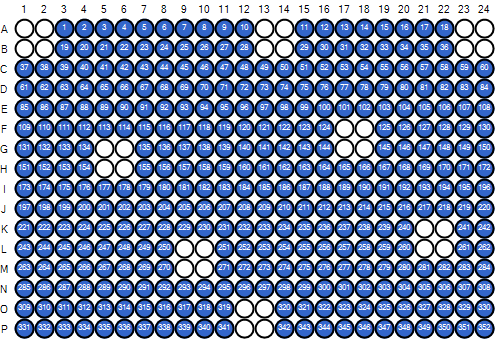

Dual cherry picking operations (1536 and 384)
- Automated nanolitre cherry pick to known destination wells
- Automated nanolitre cherry pick to optimised destination wells
- 1-8 destination replicates
Capacity
- 300 Source Plates
- 50 Destination Plates
Criteria
- Barcode Verification
- Thermal sealing post transfer
- Seal removal for source plates
- Fully automated exchange of source and destination labware
- Utilisation of multiple labware types
- Labware orientation verification
Data
- Assigned worklist excecution
- Sample mangement output file with real time update
Operating Methods
- Standalone operation of one Mosquito system (maximum 4 output replicates)
- Standalone operation of two Mosquito systems (independent automated operation)
- Dual paralell operation of two Mosquito systems (5-8 output replicates)
- Dual serial operation of two Mosquito systems (maximum 4 output replicates)
